Laser light source ultra short throw 3LCD Projector
Key Features
- 0.235:1 ultra-short throw throw ratio, easy giant screen experience；
- Manual focus in minutes and seconds, the picture is instantly clear；
- 30,000 hours light source life
- Wireless projection(Optional)
- 5,000,000:1 dynamic contrast ratio
- keystone correction function
- High light 3LCD display technology
- 360° projection
Product Specifications
Caption | Brightness |
|
|
| ISO21118 | Brightness | 4500 |
| Brightness (min) | 4300 |
| Main specification |
| Panel | Display Panel | 3x0.64 " with MLA |
| Display Technology | Liquid Crystal Display |
| Native resolution | WUXGA (1920 x 1200) |
Light source
Life time | Normal mode | 20000hrs |
| ECO1 mode | 30000hrs |
| ECO2 mode | 30000hrs |
Projection
Lens | Lens Vendor | RICOH Lens |
| F | 1.7 |
| f | 2.94mm |
| Focus/Zoom | Manual |
| Throw ratio | 0.235:1 |
| Screen size | 80-120 inch |
| contrast ratio | dynamic | 5000,000:1 |
| static | 3500:1(Min) |
| Noise | Noise(dB)(dB) | 37dB(Normal)
30dB(ECO1)
28dB(ECO2) |
| Uniformity | Uniformity(Actual Min)
-JISX6911 | 90% |
| AR | Aspect ratio | Native:16:10
Compatible: 4:3/16:9 |
| I/O Port |
|
|
| Inputs | pc input | *1 |
| HDMI | *2 |
| (mini jack,3.5mm) | *1 |
音频输入
(RCA *2) <Audio L/R> |
|
| USB-A | *1 |
| USB-B | * 1(Display) |
| RJ45 | * 1(Display) |
| Outputs | pc input | *1 |
| (mini-jack,3.5mm) | *1 |
| Control port | RS232 | *1 |
| RJ45 | * 1 (Control) |

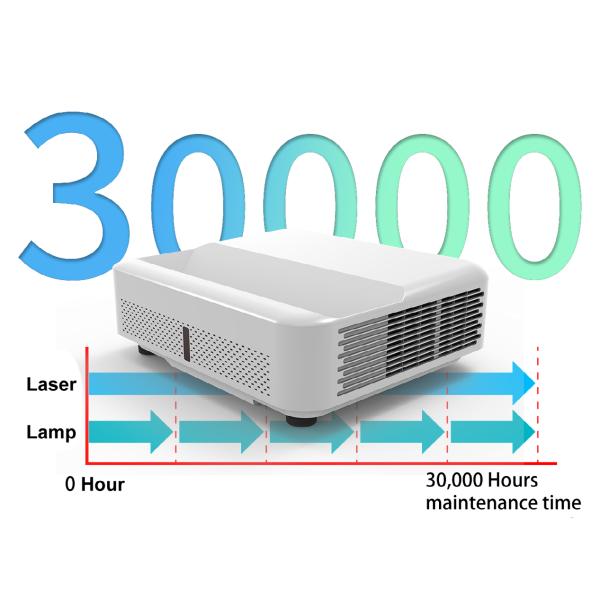

30,000 hours long light source life
The brightness of the laser light source will gradually decrease as the use time increases. The actual service life of the laser light is affected by factors such as usage mode, environmental conditions, and user habits. Using 4 hours a day, the projector can be used for about 20 years, and the service life will be effectively extended.
0.235:1 ultra-short throw throw ratio, easy giant screen experience
0.235:1 ultra-short throw throw ratio, the rear end of the machine is less than 20cm from the wall, you can enjoy 100 Inch giant screen frame.

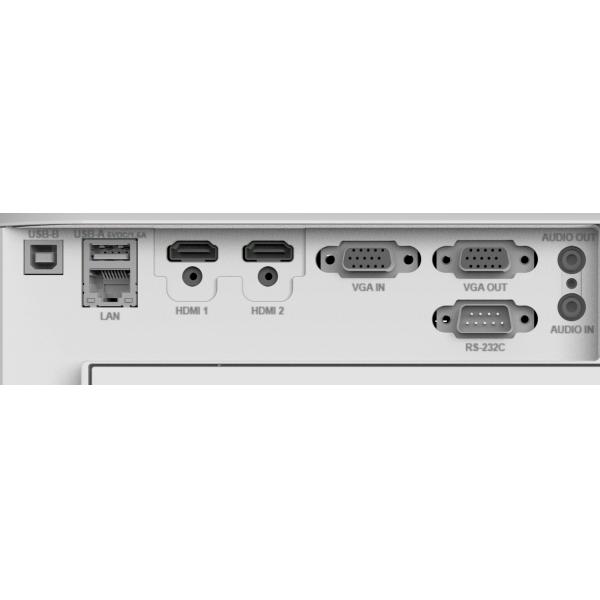

Rich port
Rich port design, support the input of a variety of signal sources, support USB interface, can be directly through the U disk projection function display JPEG and other static pictures, with audio playback function.
Compatible with wireless projection screen (optional wireless module), switch between mobile phone and computer with one click
Support Windows, Mac, Android, iOS four platforms wireless projection, mobile phone, screen, laptop picture switch projection to the screen, without the need for external wireless module to achieve wireless projection, from the change report of frequent insertion and removal steps and waiting time. Also, you can project wirelessly without an Internet connection.
